Grab Bar Installation for Showers and Baths
Grab bar installation for showers and baths can improve mobility, comfort, and confidence in accessible bathrooms throughout Georgia homes. Today’s grab bar products are available in a wide range of designs, finishes, colors, and materials, making it easier to add support without giving the bathroom an institutional appearance.
Options may include durable stainless steel, powder-coated finishes, brushed aluminum, brass, textured or peened surfaces for improved grip, and specialty designs intended to coordinate with existing bathroom fixtures. Grab bars for bathrooms can be securely installed in showers, tubs, toilet areas, and other locations where additional support is helpful.
Receive a Virtual Grab Bar Installation Quote

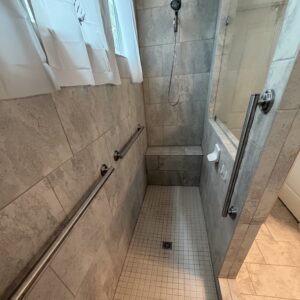

Stationary grab bars are permanently mounted to the wall or floor and are available in horizontal, vertical, and angled configurations. Fold-up grab bars provide another option, especially around toilets and transfer areas, because they can be raised out of the way when not needed. This helps preserve usable floor space while still providing support when required. Grab bars are also available in styles and finishes that coordinate with handheld showerheads, shower controls, towel bars, and wall-mounted shower seats, allowing accessibility features to blend more naturally with the overall bathroom design.
Grab Bar Placement and Installation Techniques
Grab bar placement is determined by user preference, ADA regulations and manufacturers’ recommendations. Handicap safety grab bars for showers and baths in Atlanta should be secured directly to the wall system with SecureMount Hardware, Solid Mount Hardware, or into wall studs on either side of the toilet and in the shower / bathing area. Wall reinforcement may be necessary to guarantee grab bar stability while users navigate the toilet and bathing areas.
Grab Bar Installation Resources for Metro Atlanta and North Georgia:
Choosing the Right Grab Bars for Each Bathroom Area

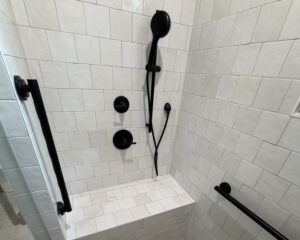

The most effective grab bar installation starts with identifying where support is actually needed. A vertical bar near the entrance to a shower or tub can help with stepping in and out, while a horizontal bar along the back or side wall provides support while standing, turning, or moving within the bathing area. Near the toilet, wall-mounted horizontal bars, angled bars, or fold-down supports can assist with sitting and standing.
The user’s height, reach, strength, balance, and mobility should all be considered when determining placement. A bar that is correctly positioned for one person may be too high, too low, or too far away for another. For that reason, grab bar installation should be planned around the individual whenever possible rather than relying only on a standard placement pattern. Although, placement patterns can be useful according to Aging Care Guide:
“A grab bar placement diagram helps identify where support is most useful, making it easier to plan a safer bathroom layout and avoid common installation mistakes. In most bathrooms, a grab bar placement diagram focuses on the shower, toilet, and bathtub areas because these are where balance support is most critical.”
Decorative Grab Bars for Modern Bathrooms
Grab bars no longer have to make a bathroom look institutional. Many manufacturers now offer decorative grab bar styles that coordinate with faucets, shower trim, towel bars, and other bathroom hardware. Available finishes may include polished chrome, brushed nickel, stainless steel, matte black, oil-rubbed bronze, and other specialty finishes.
Some decorative grab bars also serve more than one purpose. Combination designs may include towel bars, shelves, toilet paper holders, or other bathroom accessories while still providing support. This allows homeowners to incorporate grab bar installation into an existing bathroom without sacrificing appearance.
Textured and peened finishes may also provide additional grip, particularly in wet areas. The best choice depends on the location, the user’s hand strength, and the overall design of the room.
Professional Grab Bar Installation in Tile and Stone
Bathrooms with ceramic tile, porcelain, marble, granite, or other hard wall surfaces require careful drilling and appropriate tools. Special tools are used to prevent damage to the finished surface. Professional grab bar installation in tile often requires specialized drill bits, accurate measuring, and controlled drilling. Hard porcelain and natural stone can require additional time and equipment compared with drywall or standard ceramic tile.
Whenever possible, grab bars may be secured directly into wall studs or structural blocking. When framing is not located where the bar is most useful, compatible mounting systems such as Moen SecureMount may provide an alternative. The appropriate method depends on the wall construction, the grab bar model, and the location of the proposed installation.
Grab Bar Installation in Ceramic Tile, Slate, Drywall
According to Moen, SecureMount Hardware is easy and safe for any location. “Easy secure install, anywhere on the wall. Utilizing the principles of physics, the D-shaped SecureMount anchor is precision-engineered for optimal bracing behind the wall. Since no studs are necessary, installation is as easy as 1-2-3.” SecureMount Hardware meets all ADA requirements for safe grab bar hardware installation and maintenance. (SecureMount Image from dynamic-living.com) Special drill bits, and careful measuring will ensure a safe installation of your handicap safety grab bars for showers and baths in Atlanta.
SecureMount by Moen – Installation Video
Grab Bar Installation in Fiberglass Shower and Tub Enclosure
There are a variety of methods available to secure grab bars to wood studs, wood blocking, shower and bath walls, and drywall. Solid Mount hardware is a very secure installation hardware specially designed to bridge the gap between a fiberglass shower wall and the wood stud. The fiberglass shower wall sets off the wood stud or blocking by .5 to 1.5 inches or more. Solid Mount hardware utilizes a long bolt and bracket to extend through the wall space to the stud.
Grab Bars Around Toilets and Transfer Areas

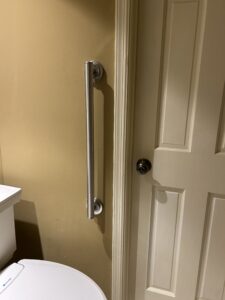

The toilet area is one of the most common locations for grab bar installation. Side-wall bars can provide leverage for lowering onto and rising from the toilet. Rear-wall bars may offer additional support depending on the room layout and the user’s needs.
Some bathrooms do not have a wall in the ideal location. In these situations, fold-down bars, floor-mounted supports, or other specialized products may be considered. Fold-down bars are particularly useful where support is needed during transfers but additional clearance is desirable when the bar is not being used. Vanities, toilet paper holders, doors, windows, and other fixtures should also be considered before determining final placement.
Grab Bar Installation for Aging in Place
Many homeowners choose grab bar installation as part of an aging-in-place plan. Installing bars before mobility becomes significantly limited can make a bathroom easier to use for older adults, family members recovering from surgery, and visitors who need additional support.
Grab bars can also be combined with other bathroom modifications such as handheld showerheads, shower seating, comfort-height toilets, improved lighting, non-slip flooring, and accessible shower controls. These improvements can often be made without completely remodeling the bathroom.
During a full renovation, additional blocking can be installed inside the walls before tile or other finishes are applied. In an existing bathroom, an experienced installer can evaluate the wall construction and determine whether studs, blocking, SecureMount hardware, Solid Mount hardware, or another approved mounting method is appropriate.
Planning a Grab Bar Project Before Installation
Before scheduling grab bar installation, it is helpful to consider where the user feels least stable and which movements are most difficult. Stepping over a tub edge, entering a shower, turning while standing, or rising from the toilet may each require a different type of support.
Photos of the bathroom can often help an installer evaluate wall surfaces, available space, existing fixtures, and potential bar locations before visiting the home. Measurements and photographs can also help determine which bar lengths and styles may be appropriate.
Careful planning before grab bar installation helps ensure that the bars are placed where they are useful, properly mounted, and coordinated with the existing bathroom whenever possible.
For professional grab bar installation, call 770.880.3405, or send us an email using our contact form.
